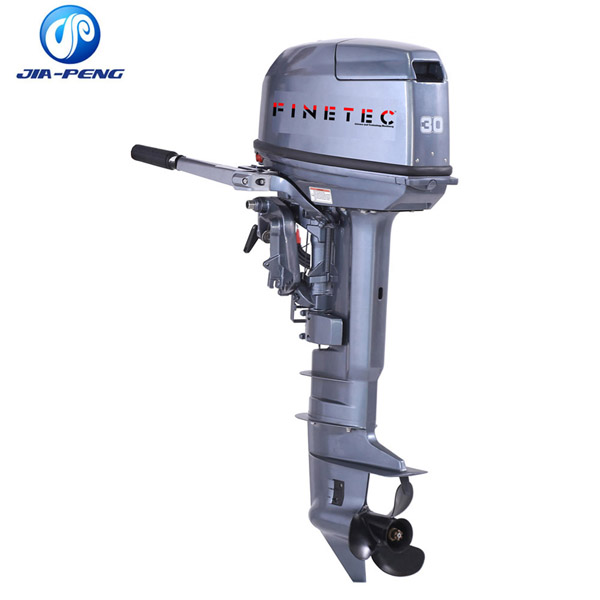

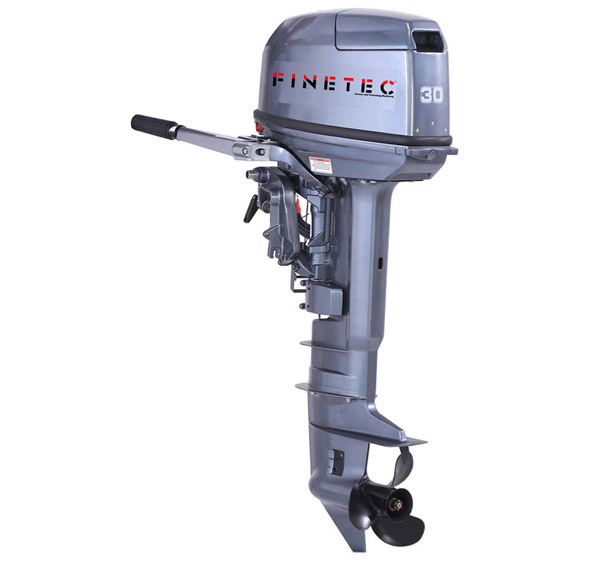

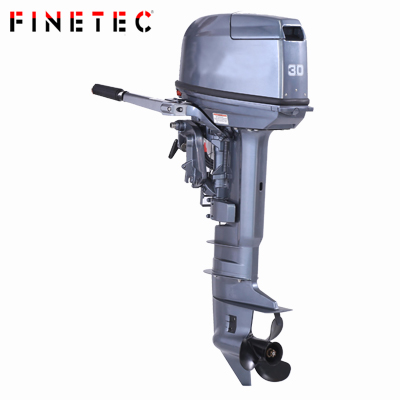

JP-T30
Publish time 2019-07-18 10:50
moto type:2Cylinder
displacement:496cc
bore*stroke:72*61mm
gear ratio:2.08
full throttle speed range:4500-5500
Max.Prop Shaft
Output:22kw(30HP)@5000rpm
Idling rpm:1100+-50 alternator
output:12V/6A
fuel/induction system:1Carb
cooling:Water/Thermostatic Control
starter:Manual starter
Direction system:Manual
Trim&Tilt:Manual /Electric
Buit-in fuel tank:24L
gear shift:Forward,Neutral,Reverse
shaft length:S=424/15" L=550/20"
dry weight:54.5KGS
Operation mode:back control
fuel consumption:15 L/h
