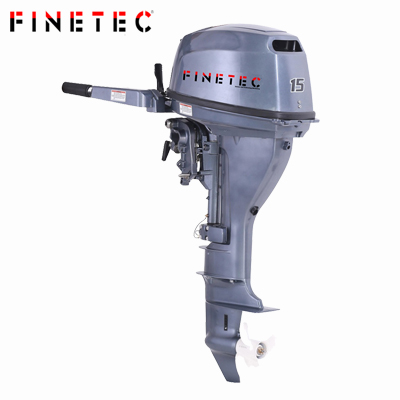

JP-F15
    Publish time 2019-07-18 10:50

moto type: 2 Cylinder
displacement:362cc
bore*stroke:63*58.1mm
compression ratio:9.3
full throttle speed range:15HP@5500rpm
max.rpm range:5000-6000
fuel/induction system:SOHC
intake:Carburetor
exhaust:Through  Proppeler
cooling:Water/Thermostatic Control
ignition system:CDI Micro Computer
alternator output:12V/10A
starter:Manual/Electric
engine oil capacity:1.8L/1.6L con o sin filtro
gear ratio:2.08
gear shift:Forward,Neutral,Reverse
shaft length:S=15" L=20"
dry weight:53.7KGS
steering angle(maximum):45from center,either direction
Operation mode:back control/ front control
fuel consumption:7.8L/h
