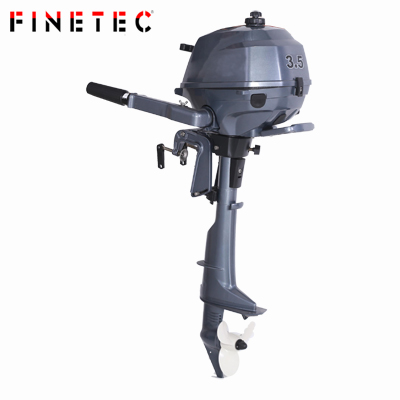

JP-F3.5
    Publish time 2019-07-18 10:50

moto type: 1 Cylinder
displacement:72cc
bore*stroke:54*36mm
compression ratio:9
full throttle speed range:3.5HP@5500rpm
max.rpm range:5250-5750
fuel/induction system:OHV
intake:Carburetor
exhaust:Above Proppeler
cooling:Water/Thermostatic Control
ignition system:TCI
alternator output:6Amp(Optional:Requiers
Charging Kit)
starter:Manual
engine oil capacity:350cc
gear ratio:2.08
gear shift:Forward,Neutral,Reverse
shaft length:S=15"
dry weight:17.5KGS
steering angle(maximum):90from center,either
direction
Operation mode:back control
fuel consumption:1.1 L/h


JP-F3.5
