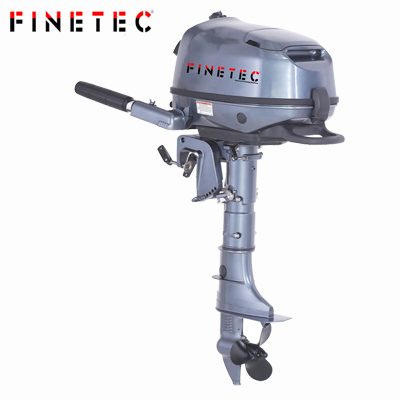

JP-F6
Publish time 2019-07-18 10:50
moto type: 1 Cylinder
displacement:139cc
bore*stroke:62*46mm
compression ratio:8.9
full throttle speed range:6.0HP@5500rpm
max.rpm range:4000-5000
fuel/induction system:OHV
intake:Carburetor
exhaust:Above Proppeler
cooling:Water/Thermostatic Control
ignition system:CDI
alternator output:6Amp(Optional:Requiers
Charging Kit)
starter:Manual
engine oil capacity:600cc
gear ratio:2.08
gear shift:Forward,Neutral,Reverse
shaft length:S=17" L=22"
dry weight:27KGS
steering angle(maximum):90from center,either direction
Operation mode:back control
fuel consumption:2 L/h
